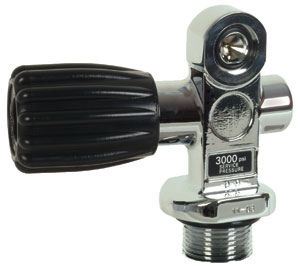

Deluxe K Valve
VA100

• Standard yoke outlet
• 3/4" - 14 NPSM inlet
• Air service
• Hex wrench tighten dip tube
• O-ring sealed bonnet
• Easy grip rubber handwheel
• Service pressure: 3000 psi

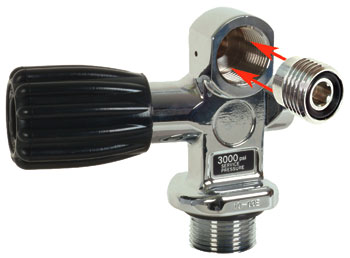

PRO Valve
VA200

• Standard yoke outlet w/spin-out adapter converts to 230 bar DIN outlet
• 3/4" - 14 NPSM inlet
• Clean for pre-blended Nitrox up to 40% FO2
• Hex wrench tighten dip tube
• O-ring sealed bonnet
• Easy grip rubber handwheel
• Service pressures: 2400, 3000, 3300, 3442 psi

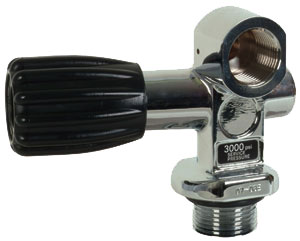

300 bar DIN Valve
VA300

• Dedicated 300 bar DIN outlet
• 3/4" - 14 NPSM inlet
• 7/8" - 14 UNF inlet
• Clean for pre-blended Nitrox up to 40% FO2
• Service pressure: 3000 psi

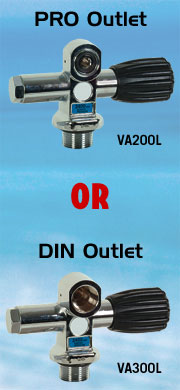

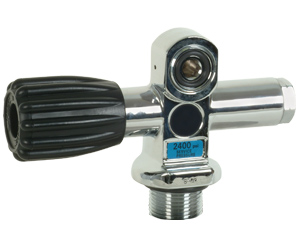

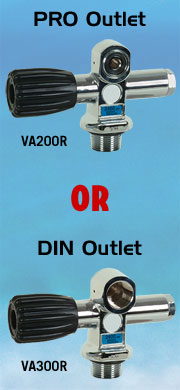

Modular PRO Valve
VA200L
VA200R

• Standard yoke outlet w/spin-out adapter converts to 230 bar DIN outlet
• Plug included
• 3/4" - 14 NPSM inlet
• Clean for pre-blended Nitrox up to 40% FO2
• Dip tube included (not shown)
• Service pressure: 2400, 3000, 3442 psi

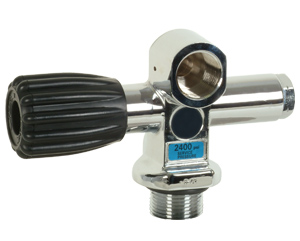

Modular 300 DIN Valve
VA300

• Dedicated 300 bar DIN outlet
• Plug included
• 3/4" - 14 NPSM inlet (VA300)
• Clean for pre-blended Nitrox up to 40% FO2
• Dip tube included (not shown)
• Service pressure: 3000, 3442 psi

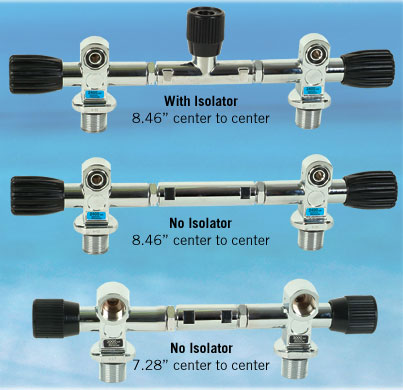

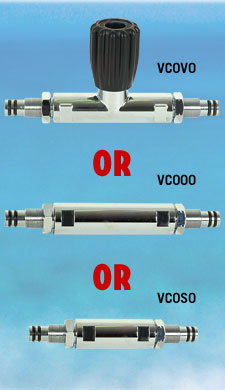

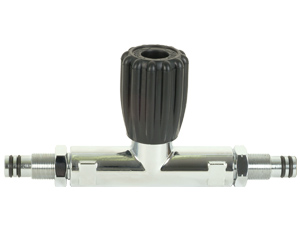

Center Crossbar with Isolator
VC0V0

• Connects Right & Left modular valves together to build a manifold
• 8.46" C-2-C with isolator valve (VC0V0)
• 7.28" C-2-C without isolator valve (VC0S0)
• Double barrel o-ring seal
• Clean for pre-blended Nitrox up to 40% FO2

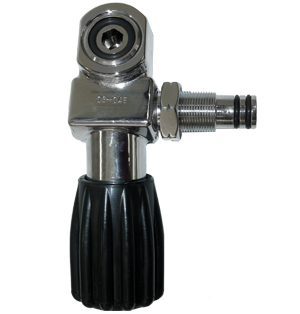

H Adapter
VH200

• Standard yoke outlet w/ spin-out adapter converts to 230 bar DIN outlet
• Dedicated 300 bar DIN outlet (VH300)
• Attaches to all Modular valves
• Clean for pre-blended Nitrox up to 40% FO2

H Adapter
VH300

• Dedicated 300 bar DIN outlet
• Attaches to all Modular valves
• Clean for pre-blended Nitrox up to 40% FO2
